Ⅰ. OVERVIEW OF YINHAI HOLE OPENERS
|
Roller Cone Hole Opener |
|
| Size (inch): | 8”~62”and customized according to drawings or requirements. |
| Roller cone size(inch): | 6 1/2”~26” Roller cones from tricone bits |
| Pilot rock bit size: | 5 1/2”,6 1/2”,8 1/2”,12 1/4” etc. |
| IADC code: | 217,327,437,517,537, 617, 637, 737, etcCan be customized |
| Stabilizer size(inch): | Can be customized |
| Bearing type: | Sealed or Open bearing. |
| Thread connection: | API Reg/FH/IF/Pulling Eye ,etc |
| Application: | It is suitable for the trenchless, no-dig, horizontal directional drilling (HDD), large size well,mining and infrastructure applications etc. |
Feature
A.More suitable tooth type, bearing structure, sealing type and angle of inclination of paws.
B.Water cutting, good sand returning can effectively reduce sand gathering.
C.More protection teeth on the roller cutters.
D.Perfect welding process prevents the damage to sealing and bearing system because of over beat.
E.Fully heat-treated alloy steel.
F.Unique anti-falling design of cones prevent the accident caused by falling cones which is leaded by bearing damage.
G.The bit body adopts spiral design with good stabilizing and sand returning performance to improve hole opening speed reducing repeating rock breaking of cones.
H.The customer manufactured hole opener 'OD are between 220mm to 1600mm.
I.According to the features of drilling machine and different drilling formation.
J.Professional engineers design hole opener for your drilling environment.
K.Our TCI tooth cone hole opener are promptly manufactured,we also custom manufacture reamers according to customers' special request.
Production of YINHAI Hole Opener/Rock Reamer
Ⅱ. Hot-selling size of Hole openers

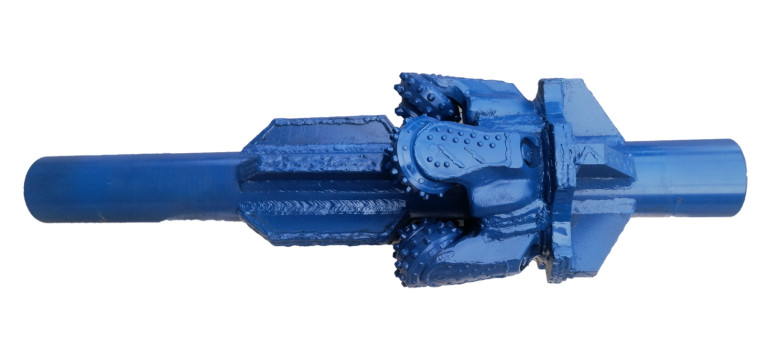

| HDD ROCK REAMER /HOLE OPENER |
YH11-280MM3 IADC217 |
 |
|
| MAX. DIAMETER | 11”/280MM |
| INSERTED TEETH TYPE | MILLED STEEL TOOTH |
| LENGTH | 810mm |
| ROLLER CONE TPEY | ROLLER CONES FROM 7 1/2"=190.5MM IADC217 TRICONE BITS |
| QTY. OF ROLLER CONES | 3 PCS |
| STABILIZER | WITHE STABILIZER |
| CONNECTION | BOTH BOX 3 1/2" API REG (BOX/BOX) |
| NET/GROSS WEIGHT | 90KG/100KG |
| PRODUCT DIMENSIONS | 81*27*27CM |
| PACKING SIZE | 95*44*42CM |
| SUITABLE FORMATION | SOFT TO MEDIUM FORMATION WITH LOW COMPRESSIVE STRENGTH |
Ⅱ. Hot-selling size of Hole openers

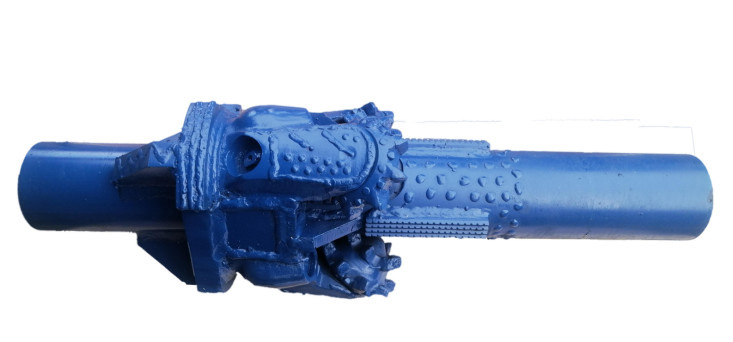

| HDD ROCK REAMER /HOLE OPENER |
YH11-280MM3 IADC217 |
 |
|
| MAX. DIAMETER | 11”/280MM |
| INSERTED TEETH TYPE | TUNGSTEN CARBIDE INSERTS-- SCOOP TEETH |
| LENGTH | 810mm |
| ROLLER CONE TPEY | ROLLER CONES FROM 7 1/2"=190.5MM IADC537 TRICONE BITS |
| QTY OF ROLLER CONES | 3 PCS |
| STABILIZER | WITHE STABILIZER |
| CONNECTION | BOTH BOX 3 1/2" API REG (BOX/BOX) |
| NET/GROSS WEIGHT | 90KG/102KG |
| PRODUCT DIMENSIONS | 81*27*27CM |
| PACKING SIZE | 95*44*42CM |
| SUITABLE FORMATION | SOFT TO MEDIUM FORMATION WITH LOW COMPRESSIVE STRENGTH |

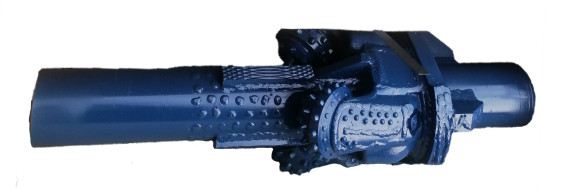

| HDD ROCK REAMER /HOLE OPENER |
YH15-380MM3 IADC537 |
 |
|
| MAX. DIAMETER | 380MM / 15 INCH |
| INSERTED TEETH TYPE | TUNGSTEN CARBIDE INSERTS-- SCOOP TEETH |
| LENGTH | 1200mm |
| ROLLER CONE TPEY | ROLLER CONES FROM 8 1/2"=215.9MM IADC537 TRICONE BITS |
| QTY OF ROLLER CONES | 5 PCS |
| STABILIZER | WITHE STABILIZER |
| CONNECTION | BOTH BOX 3 1/2" API REG (BOX/BOX) |
| NET/GROSS WEIGHT | 200KG/220KG |
| PRODUCT DIMENSIONS | 120*37*37CM |
| PACKING SIZE | 132*43*53CM |
| SUITABLE FORMATION | SOFT TO MEDIUM FORMATION WITH LOW COMPRESSIVE STRENGTH |
Ⅲ.Suitable Formation reference -- YINHAI Hole Openers/Rock Reamers
| Suitable Formation | SOFT ROCK FORMATION：≤30MPa, IADC 517 MEDIUM TO MEDIUM HARD FORMTION: 40-80MPa,IADC 537/617 HARD FORMATION:≥80MPa, IADC637 |
| IADC 217 | Soft to medium formation with low compressive strength,such as mid-soft shale,mid -soft limestone,mid-soft sandstone and soft formation with hard interbeds |
| IADC 517 | soft formation with low compressive strength ,such as mudstone,gypsum,salinastone,soft shale and soft limestone |
| IADC537 | Soft to medium formation with low compressive strength,such as mid-soft shale,mid -soft limestone,mid-soft sandstone and medium formation with harder abrasiveness interbeds |
| IADC637 | Hard formation with high compressive strength,such as sandstone，limestone,dolomite and anhydrite,marble |
Ⅳ. HDD Single Roller Cones/Segments from tricone bits
● Structure Nomenclature:
● Technical Data for Single Roller Cones
